Waterproof IP68 Underwater Light LED Outdoor Light LED Diving Light Underwater LED Fountain Light with Center Hole(JP942121B)

Waterproof LED Pool fountain light, 24V LED Fountain Light,Submersible LED Light, Stainless Steel LED underwater Fountain Lights, Underwater LED Fountain Light, LED IP68 Underwater Light, LED Outdoor Underwater LampThis multi-wattage available submersible fountain light has 12 SMD LEDs with diameter

Featured Products

Waterproof LED Pool fountain light, 24V LED Fountain Light,Submersible LED Light, Stainless Steel LED underwater Fountain Lights, Underwater LED Fountain Light, LED IP68 Underwater Light, LED Outdoor Underwater Lamp

This multi-wattage available submersible fountain light has 12 SMD LEDs with diameter of 182mm, there is a G(PF) 1 1/2" threaded cut-out hole in the center (designed to insert the matched fountain nozzle).

The entire lamp is corrosion-resistant stainless steel, structurally waterproof with the silicone ring seal, so that these LED underwater lights are waterproof (IP68 rating) and submersible.


Main Features
1.Stainless steel 304# or 316# housing, front cover is polished stainless steel with step tempered 10mm thickness glass.
2.Single color / RGB / RGB 3in1 for option.
3.Compatible with DMX-512 controllers for RGB color changing.
4.Rated IP68 for long-term underwater use, CE and RoHS proved.
5.CREE or OSRAM LEDs are high intensity and low power consumption.
6.Extremely up to 50,000 hours long service life.
7.Optical lens with high light transmittance.
8.2m rubber cable is included. Longer lengths are available for your specific requirement.

Main Specifications
Front Cover & Housing: Molding shaped 304#/316# (316L# available as special order) stainless steel
LED Source: 12x1W / 2W / 1W RGB / 2W RGB / 3W RGB3in1
Lens: Optical lens, efficiency ≥85%
Glass: Tempered glass T=10mm
Cable gland: IP-68 PG-11 copper and nickel coated
Light Color: Single color/ RGB
Working temperature: -20ºC to 40ºC
Driver: Constant current output
           Single color LED=1-circuit output
           RGB 3in1 LED=3-circuit output
MCPCB: Aluminum, coefficient of heat conductivity≥2.0w/mk
Power cable: H05RN-F 2x1.0mm2 L=2m (for Single color)
                      H05RN-F 4x0.75mm2 L=2m (for RGB)


Product Models
Item No.Lighting SourceLens Beam Angle (°)Consumption(Watt)Input Voltage(V)IK Rate
942121B12x1W 8°/15°/20°/30°/45°/60°/90°12.4DC24V09
942122B12x2W8°/15°/20°/30°/45°/60°/90°24.6DC24V09
942123B12x1W RGB8°/15°/20°/30°/45°/60°/90°12.0DC24V09
942124B12x2W RGB8°/15°/20°/30°/45°/60°/90°23.5DC24V09
942126B12x3W RGB 3in125°/30°/45°/60°/90°35.4DC24V09

Product Dimension
Waterproof IP68 Underwater Light LED Outdoor Use Light LED Submersible Light Underwater LED Fountain Light with Center Hole (JP942121B)
Product Image
Waterproof IP68 Underwater Light LED Outdoor Use Light LED Submersible Light Underwater LED Fountain Light with Center Hole (JP942121B)
Production Test
Waterproof IP68 Underwater Light LED Outdoor Use Light LED Submersible Light Underwater LED Fountain Light with Center Hole (JP942121B)

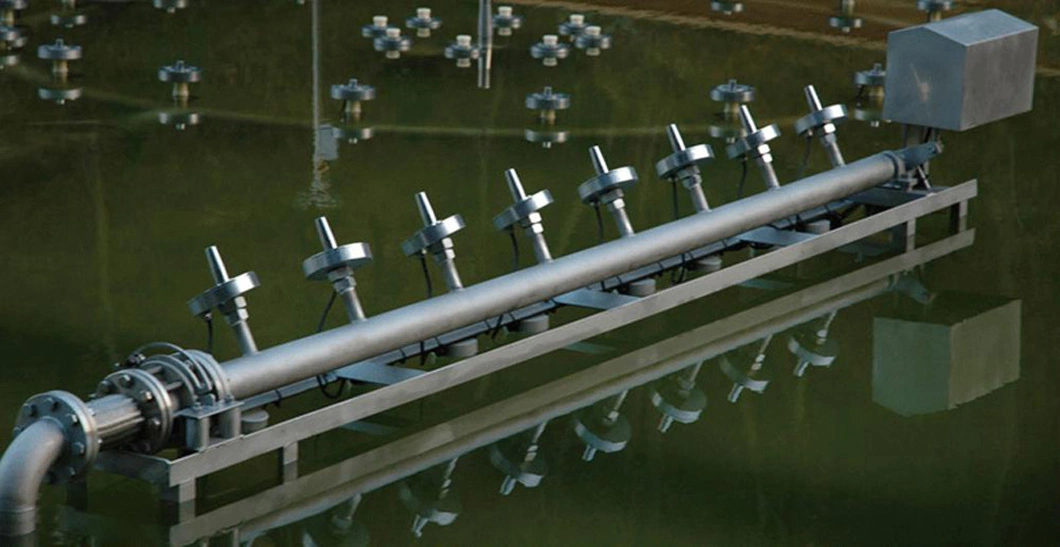

Product Installation

Waterproof IP68 Underwater Light LED Outdoor Use Light LED Submersible Light Underwater LED Fountain Light with Center Hole (JP942121B)Dry Land Fountain Light (underground)
Waterproof IP68 Underwater Light LED Outdoor Use Light LED Submersible Light Underwater LED Fountain Light with Center Hole (JP942121B)Pool Fountain Light (above ground)
*Warning:
Must be installed under the water to prevent the lights from being burnt off because of the over-heating.

Product Application
JP Lighting underwater LED fountain lights are powerful, energy-saving, and modern design, they are perfect solution for almost any underwater applications such as installation in ponds, pools, squares, aquariums, waterfalls, shopping malls, fountains, docks, and in marine environments.
Waterproof IP68 Underwater Light LED Outdoor Use Light LED Submersible Light Underwater LED Fountain Light with Center Hole (JP942121B)
