Features
1. Selectable constant current and constant voltage output.(Custom on request);
2. There are two wiring options for terminals and leads
3. Efficient LLC power supply scheme;
4. Short circuit,over current and over voltage protection;
5. High efficiency synchronous rectification scheme for constant voltage mode;
6. In line with the world lighting safety standards;
7. 5 years quality warranty.
Parameter
Shell structure
Wiring diagram
Applications
a. Skilled workers and experienced QC for quality control.
b. Competitive price,superior quality & faster serivce.
c. Can be customized according to customers demand.
d. For your inquiry, we're to reply in detail within 24hours.
e. 2-5 years warranty time.
f. Lead time: 5-7 workdays for sample order,12-15 workdays for official order
g. We're dedicated to supply most suitable product, provide best sales& after-sale services to you.
FAQ
Q1. Are you a manufacturer?
A: Yes, we are the manufacturer. You are warmly welcome to visit our factory in Shenzhen, China.
Q2. Do you have any MOQ limit for led driver & light & accessories order?
A: The MOQ is 2pcs for sample checking is available. We welcome sample order to test and check quality.
For formal order, the MOQ is 100pcs/item/size.
Q3. Is it OK to print my logo on led driver & light product and use my own package and trade mark?
A: Yes. Normally we offer white inner box and carton box. Use your own design is ok. Please inform us
formally before our production and confirm the design firstly based on our sample.
Q4: Does your company accept OEM?
A: Yes, welcome OEM!
1. Selectable constant current and constant voltage output.(Custom on request);
2. There are two wiring options for terminals and leads
3. Efficient LLC power supply scheme;
4. Short circuit,over current and over voltage protection;
5. High efficiency synchronous rectification scheme for constant voltage mode;
6. In line with the world lighting safety standards;
7. 5 years quality warranty.
Parameter
| Input voltage | 90-130V/AC&180-240V/AC | |
| Frequency range | 50-60Hz | |
| Output voltage | 12V / 24V | |
| Output current | 2500mA / 1300mA | |
| Rated power | 30W | |
| Efficiency | 86% | |
| Power factor | 0.95 | |
| Output mode | Constant voltage | |
| Net weight | 145g | |
| Size | φ79*h31mm A=65.5mm | |
| Protect | Short circuit protection | Intermittent restart mode,after the exception can be automatically restored |
| Over current protection | Hiccup mode,after the removal of abnormal flow can be automatically restored | |
| Over voltage protection | Hiccup mode,after the exception of abnormal pressure can be automatically restored | |
| Environment | Operating Temperature/humidity | -30-45ºC,5-95%RH |
| Storage Temperature/humidity | -40-70ºC,5-95%RH | |
| Temperature coefficient | ±0.03%/ºC(0-50ºC) | |
| Vibration | 5-55Hz/2g,30 Minutes | |
| EMC & Safety | Safety | EN60598 |
| Pressure | I/P-O/P:3KVAC IP-FG:1.88KVAC O/P-FG:0.5KVAC | |
| Insulation resistance | I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25ºC/70%RH | |
| EMC Emission | EN55022,EN55015 Class B | |
| EMC Immunity | EN61547,ENV5024,EN61000-4-2/3/4/6/8/11 | |

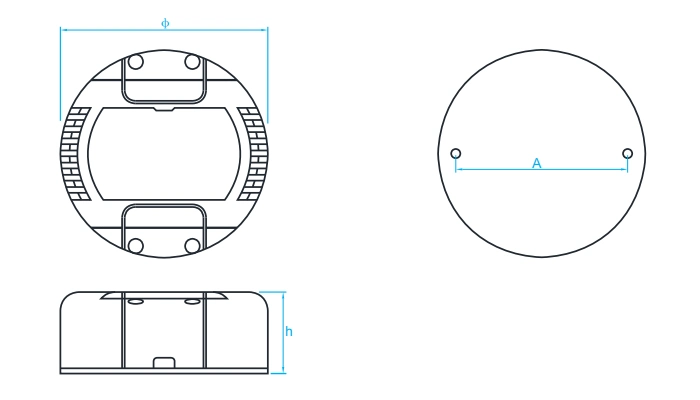

Shell structure
Wiring diagram
Applications
a. Skilled workers and experienced QC for quality control.
b. Competitive price,superior quality & faster serivce.
c. Can be customized according to customers demand.
d. For your inquiry, we're to reply in detail within 24hours.
e. 2-5 years warranty time.
f. Lead time: 5-7 workdays for sample order,12-15 workdays for official order
g. We're dedicated to supply most suitable product, provide best sales& after-sale services to you.
FAQ
Q1. Are you a manufacturer?
A: Yes, we are the manufacturer. You are warmly welcome to visit our factory in Shenzhen, China.
Q2. Do you have any MOQ limit for led driver & light & accessories order?
A: The MOQ is 2pcs for sample checking is available. We welcome sample order to test and check quality.
For formal order, the MOQ is 100pcs/item/size.
Q3. Is it OK to print my logo on led driver & light product and use my own package and trade mark?
A: Yes. Normally we offer white inner box and carton box. Use your own design is ok. Please inform us
formally before our production and confirm the design firstly based on our sample.
Q4: Does your company accept OEM?
A: Yes, welcome OEM!
