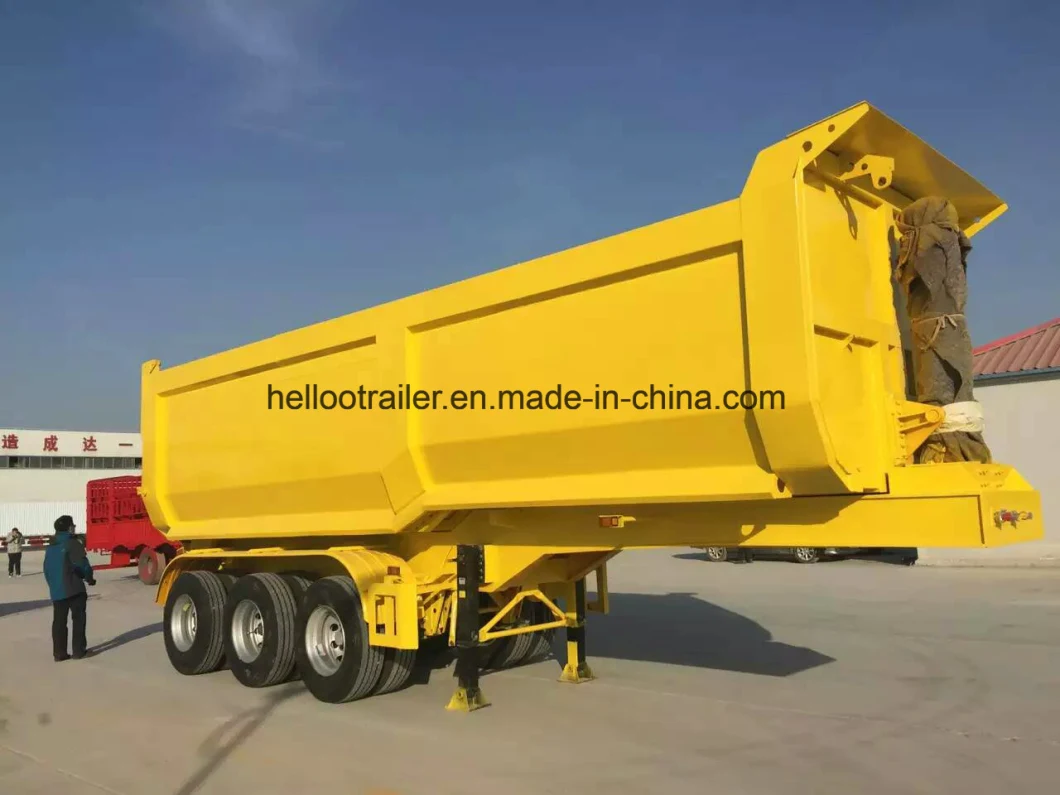

Tri Axles Dump Semi Trailer Hyva Cylinder U Shape 3 Axles Rear Tipping Truck Trailer
Detail images:
2. Experienced staffs answer all your questions;
3. Customer's design is available for certain products(OEM);
4. Spare parts for all types of engine machinery with reasonable price;
5. Different brand of trucks can be provided with competitive price.
Authorized Certificate:
CCC(China Compulsory Certification)
BV (Bureau Veritas)
ISO9001
Related products:
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are trailer manufacturer.
2. Q: What's you delivery time?
A:25-30days after advance deposit.
3.Q:What payment do you accept?
A: we accept T/T and L/C at most ;other payment is negotiable
4.Q:What is warranty time?
A:Main frame,one year; vulnerable parts, three month; other parts,half year.
5.Q:What's your after sale service?
A:We provide technical support for our products and whole life parts supply.
Welcome you and your friends to visit our factory at any time !!!
Contact: Grace Wang
Phone: (+86) 183 5414 5160
| Item number: HT9401Z | |
| Trailer Model | 3 axle 80ton tipper semi trailer |
| Overall Dimension (Lx W x H)(mm) | 11200mmX2550mmX3500mm |
| Inner Dimension | 10000mmX2330mmX1780mm |
| Wheelbase(mm) | 6100+1320+1320mm |
| Axle | FUWA 20TON Axle |
| Axle Number | Three |
| Lifting | HYVA hydraulic lifting system, model:FC214-5-09030, lifting weight:55-90Tons, Maxim Lifting Weight 90Tons, PTO with oil tank and hydrauic system |
| Track | 1840/1840/1840 |
| Suspension system | Mechanical suspension, Three axis series balanced steel plate spring suspension |
| Suspend Size (mm) | 1760 |
| Steel Spring | 10/10/10 leaf spring suspension |
| Curb Weight(kg) | 12000 |
| Max Total Weight(kg) | 100000 |
| Loading Weight(kg) | 80000 |
| Thickness | bottom:8mm, side:6mm |
| Traction Pin | JOST Brand Φ90MM or 50MM |
| Tire Type and quantity | 12 R22.5 12units |
| Front Fitting Radius (mm) | 1760 |
| Landing Gear | JOST brand 28ton |
| Brake system | ABS braking system |
| Brake air chamber | Two double and two single chamber |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| One set 6-core standard Cable. | |
