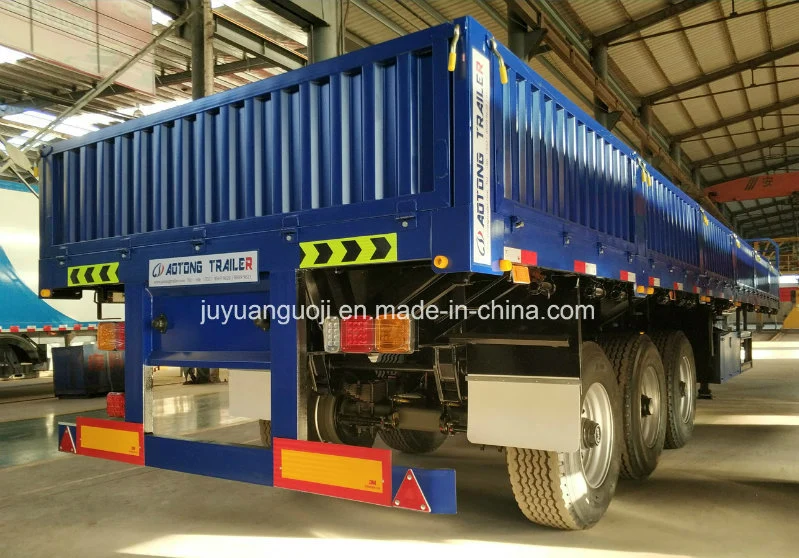

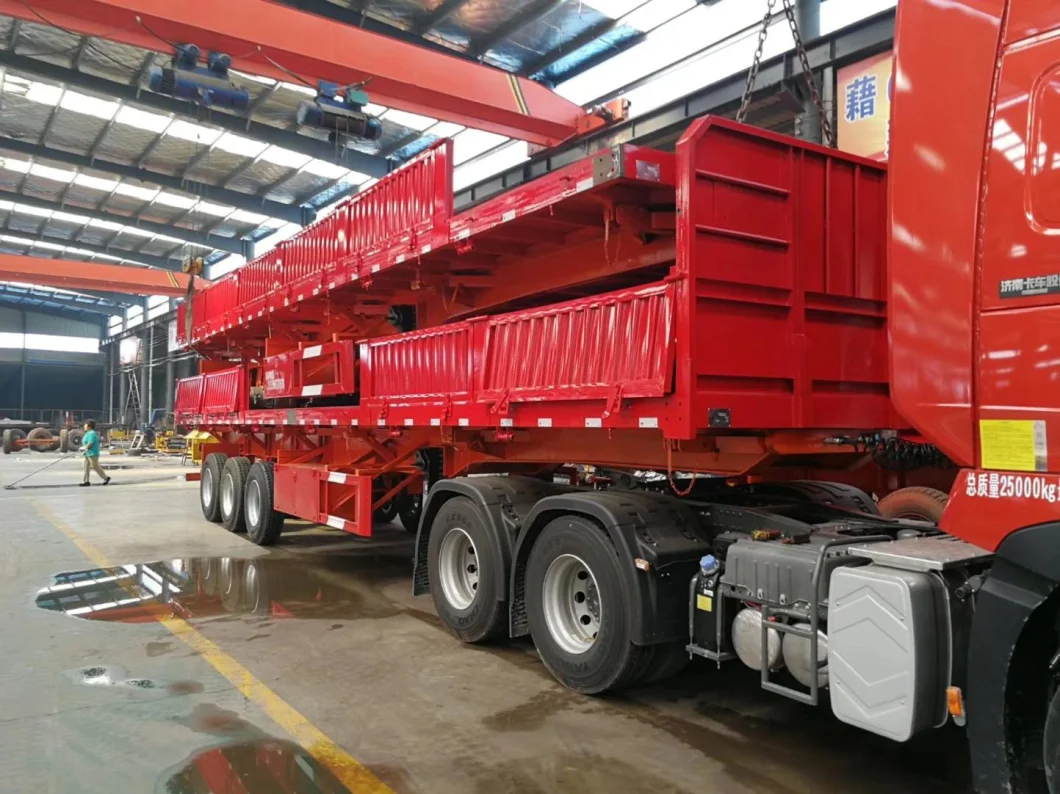

3 Axle Multipurpose Cargo Truck Trailer Bulk Cargo Transport Sidewall Semi Trailer

3 Axles Utility Cargo Trailer Truck for Container, Loose Cargo or Bulk Cargo Transport ModelLAT9400XXYSize(12500-13000)*2500*1500 (mm)Side board height1800-2500mm optionalPayload50000KGMain beamHeavy duty I beam.Cross beam160mmPlatechecked plate or flat plateDoorSide door or rear door optionalAxles3 * 13ton capaci

Featured Products

3 Axles Utility Cargo Trailer Truck for Container, Loose Cargo or Bulk Cargo Transport
3 Axles Utility Cargo Truck Trailer Bulk Cargo Transport Sidewall Semi Trailer
3 Axles Utility Cargo Truck Trailer Bulk Cargo Transport Sidewall Semi Trailer
3 Axles Utility Cargo Truck Trailer Bulk Cargo Transport Sidewall Semi Trailer


3 Axles Utility Cargo Truck Trailer Bulk Cargo Transport Sidewall Semi Trailer


3 Axles Utility Cargo Truck Trailer Bulk Cargo Transport Sidewall Semi Trailer

3 Axles Utility Cargo Truck Trailer Bulk Cargo Transport Sidewall Semi Trailer



Model

LAT9400XXY

Size

(12500-13000)*2500*1500 (mm)

Side board height

1800-2500mm optional

Payload

50000KG

Main beam

Heavy duty I beam.

Cross beam

160mm

Plate

checked plate or flat plate

Door

Side door or rear door optional

Axles

3 * 13ton capacity  (Brand optional)

Suspension

Mechanical suspension (Air suspension optional)

Leaf spring

10pcs

Tire

12R22.5  12pcs  (Other size optional)

Rim

9.00-22.5  12pcs   (Other size optional)

Kin pin

2''/3.5'' bolt type

Landing gear

28 Ton two speed

Twist locks

optional

Braking system

Double air chamber ,brake valve,40L air tanks ;ABS optional

Electrical

LED light , 7 ways ,24V

Painting

Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting



3 Axles Utility Cargo Truck Trailer Bulk Cargo Transport Sidewall Semi Trailer
3 Axles Utility Cargo Truck Trailer Bulk Cargo Transport Sidewall Semi Trailer
3 Axles Utility Cargo Truck Trailer Bulk Cargo Transport Sidewall Semi Trailer
3 Axles Utility Cargo Truck Trailer Bulk Cargo Transport Sidewall Semi Trailer
3 Axles Utility Cargo Truck Trailer Bulk Cargo Transport Sidewall Semi Trailer

We are manufacture for trailers.

Total weight: 8200KG + 40000KG = 48200KG
Dimensions: 12500*2550*2650mm
Wheel Track: 1840mm
Wheelbase: 6750mm + 1300mm + 1300mm

SPECIFICATION
1) Main Frame
Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes
500mm Height I beam; Top Flange 14mm, width 140mm; Middle Flange 6mm; Bottom Flange 16mm, width 140mm
2) Floor
Steel Sheet 3mm thinkness
3) Wall Side Height
600-1300mm
4) Axle
3 axles, FUWA/BPW/Huajing/L1 brand
5) Suspension
Multi - leaf spring Mechanical suspension / Air suspension optional
6) Leaf Spring
Four sets of reliable  10 Leaf of 90mm*13mm, or 12 Leaf of 100mm*13mm
7) King Pin
One unit of 2" / 3.5" bolt-in type kingpin
8) Landing Gear
JOST two speed, manual operating, heavy duty landing gear
9) Wheel Rim
12 units of 9.0R22.5 rim
10) Tyre
12 units of 11R22.5 / 12R22.5 / 315/65R22.5 Tubeless tyre
11) Twist Lock
12 nos. of ISO twist lock for 2x20ft, 1x40ft container; the retractable central locks an be laid down
12) Spare Wheel Carrier
One set of spare wheel carrier including a riser
13) Pneumatic Braking System
System with emergency brake and parking brake; Dual line, air brake, piggyback spring on all axles;
Two units of WABCO RE 6 relay valve; Four units of T30/30 chamber; Two units of T30 chamber; Two units of reliable local brand 45L air tank
14) ABS
According to customer's request
15) Electrical System
One unit of 24Volt 7-pin ISO socket; LED type of Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set of sealed wiring harness
16) Mudguards
Semi mudguard for rear wheels with mudflaps
17) Side Guard
According to the requirement of the customer
18) Painting
- Sand blasting proccessing clean rust
- One coat of anticorrosive primer
- Two coats of finish urethane paint
- Color is according to customer's request
19) Accessory
One tooling box with a set of standard trailer tool
20) Packing & Shipping
Transport by bulk cargo carrier, RORO or 40'HQ container
3 Axles Utility Cargo Truck Trailer Bulk Cargo Transport Sidewall Semi Trailer
