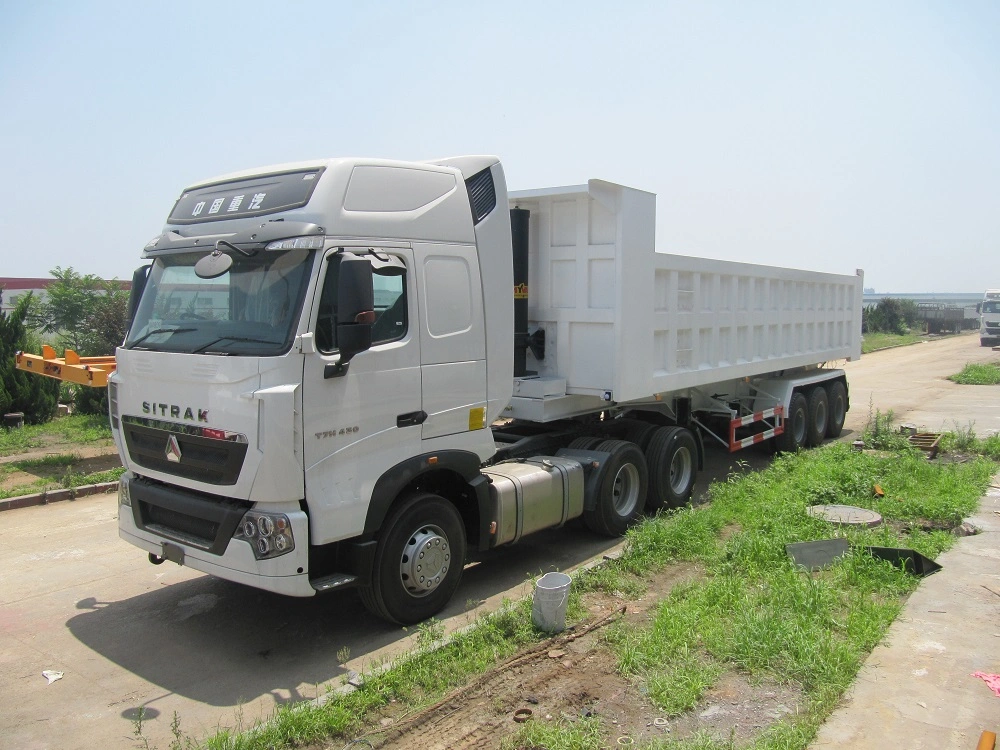

Front lifting tipper trailer

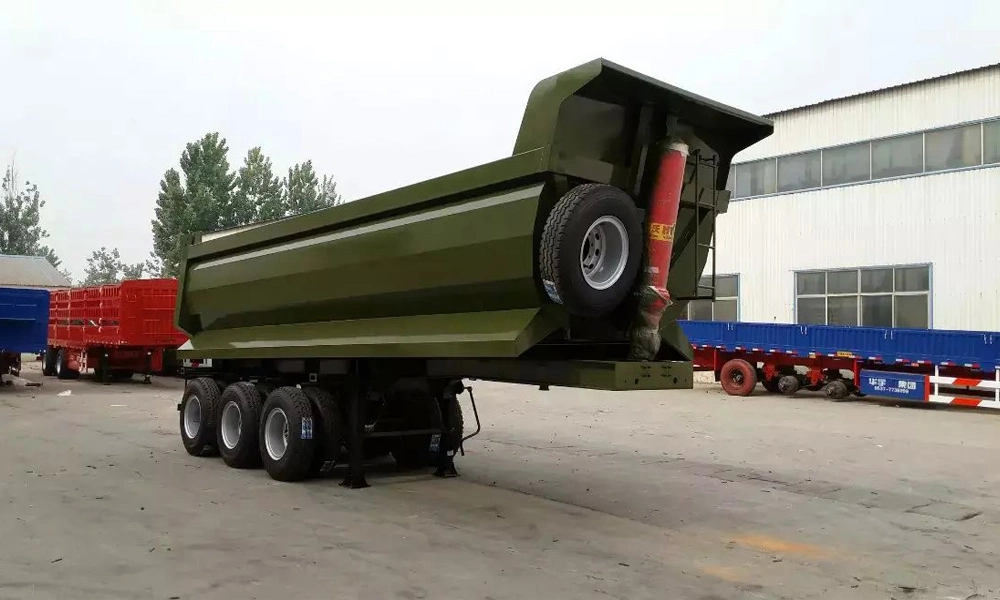

U-shape box
| Tri-axle tipper Semi-trailer | |||||||
| Weight: | |||||||
| Tare Weight | About 12T | ||||||
| Payload | 40Tons | ||||||
| Specification: | |||||||
| Axle number | three | ||||||
| Axle specs. | FUWA 13T | ||||||
| Suspension | Common Suspension | ||||||
| King Pin | 3.5'' 90# traction pin | ||||||
| inner Dimensions (LxWxH) | 9500×2500×1600mm ,floor 6mm, side wall ,4mm | ||||||
| Rim | 9.0-25 | ||||||
| Steel plate Spring | 10pieces | ||||||
| Tire: | |||||||
| Tire specs. | 315/80R22.5 or 10.00R20 | ||||||
| Number of Tire | 12 pieces | ||||||
| Spare Tire Carriers | 2 piece | ||||||
| Frame: (specs. And materials) | Main beam height is 500mm | ||||||
| Frame Beam | Upper plate is 14mm, lower plate is 14mm,middle is 8 mm. | ||||||
| lifting system | hyva191 cylinder | ||||||
| Landing Leg Support | Chinese brand 28T | ||||||
| Brake: | |||||||
| Emergency Brake | WABCO | ||||||
| Brake Chamber | Four double and two single chamber | ||||||
| Electrical: | |||||||
| Voltage | 24V | ||||||
| Receptacle | 7 ways(7 wire harness) | ||||||
| Light color: | LED light | ||||||
| Front marker lamp | front corner marker lamp is red, Reflector lamp is white | ||||||
| Side marker lamp | Orange | ||||||
| Rear lamp | Red | ||||||
| Turn signal lamp | Orange | ||||||
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint | ||||||
U-shape box
