3 Axle Hydraulic Cylinder Dump Trailer/ Rear Dumper Heavy Truck Semi Trailer
Trailer Details Show:
Competitive Advantages
Specification
Delivery
We have trailer wax spray process before delivery
Diversity of Products
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received 30% of deposit.
·Terms of Payment: T/T with 30% deposit, 70% of balance will pay off before delivery
If you are interested in our products, pls feel free to contact with me or you can call me freely! Thank you!

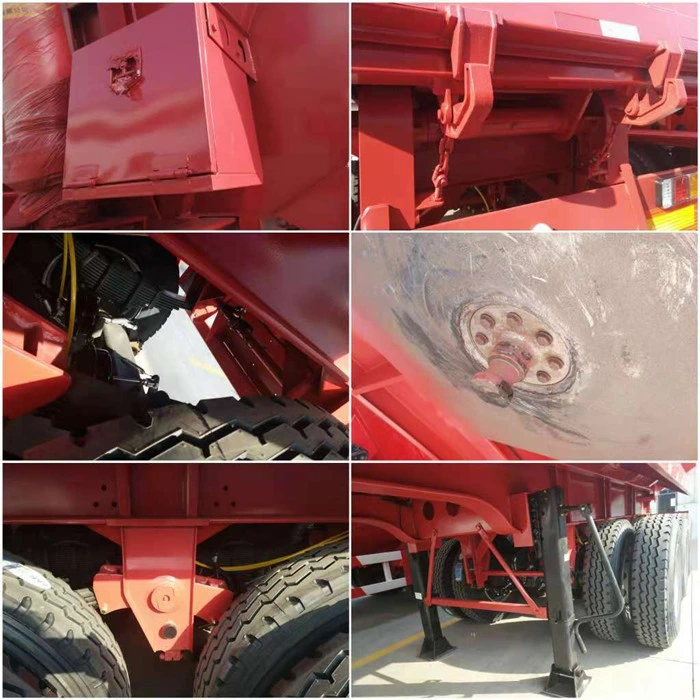

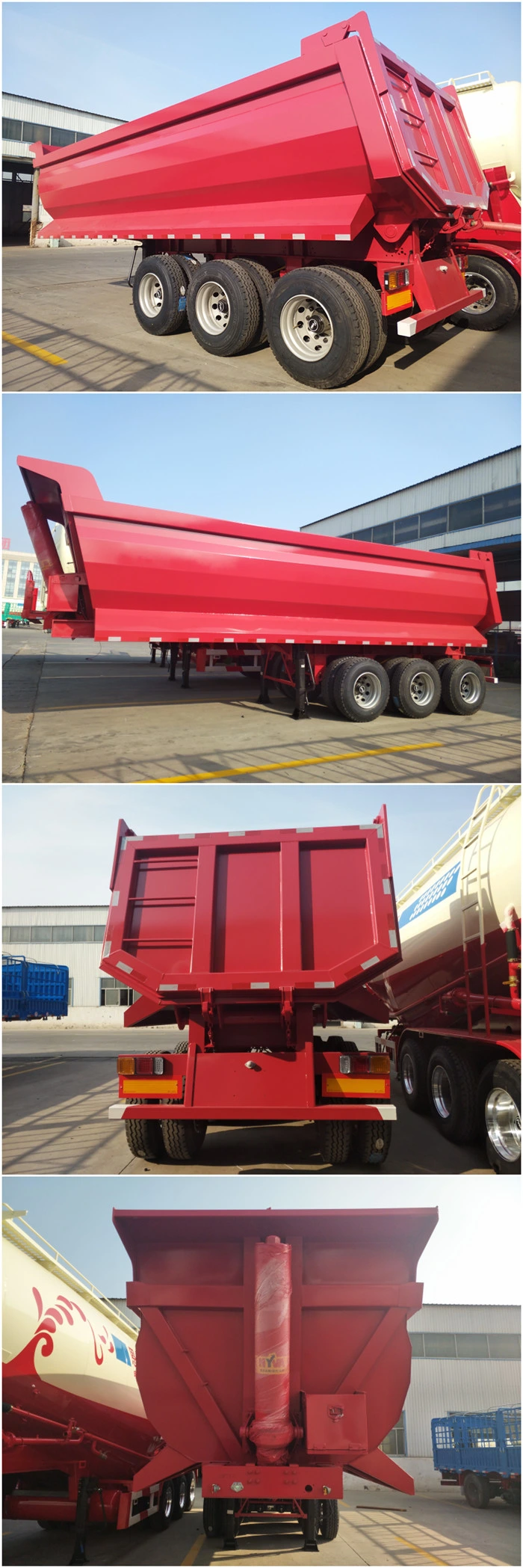

Trailer Details Show:
Competitive Advantages
1. It's our own factory, we have superior quality, reasonable price, advanced technology, fast delivery, professional service from order to shipping.
2. Optional trailer sizes and styles are available.
3. Certificate/quality approvals: ISO9001:2008, CCC, BV, etc.
2. Optional trailer sizes and styles are available.
3. Certificate/quality approvals: ISO9001:2008, CCC, BV, etc.
4. Small order quantity can be accepted. MOQ is 1 set.
5. Exported to many countries, such as Russia, France, Southeast Asia, Africa and more than 20 countries.
5. Exported to many countries, such as Russia, France, Southeast Asia, Africa and more than 20 countries.
Specification
| Tare weight | 8400kg |
| Size | 9140mm*2500mm*3500mm |
| Payload | 30-80T |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel T700, welded by automatic submerged-Arc processes. Top flange 14mm, width140mm; Middle Flange 8mm; height 500mm; bottom flange14mm,width 140mm |
| Side beam | standard |
| Cross member | standard |
| Floor | 4mm T700 |
| Side wall | height 1300mm thickness 4mm T700 |
| Cylinder | HYVA brand |
| Axle | 3 Axle FUWA/HJ/BPW brand 13T |
| Suspension | American type suspension |
| Leaf spring | 10pcs*13mm*90mm |
| Tire | 11.00R20 Triangle/Double star brand 13pcs |
| Wheel rim | 8.0-20 jingu brand 13pcs |
| Kingpin | 2"/3.5'' bolt-in king pin |
| Landing gear | two-speed, manual operating ,heavy duty landing gear 28T |
| Twist lock | no |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | 4S/2M |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime, 2coats of final paint |
| Accessories | One standard tool box, one spare tire carrier, one crank, one shaft head wrench, four side lights, two rear lights |
| Date of delivery | 25 workdays after we received 30% of contract value T/T down payment. |
Delivery
We have trailer wax spray process before delivery
Diversity of Products
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received 30% of deposit.
·Terms of Payment: T/T with 30% deposit, 70% of balance will pay off before delivery
If you are interested in our products, pls feel free to contact with me or you can call me freely! Thank you!
