|Overall dimension||detail according to the drawing|
without spare tire
|Leaf spring||piece||6||90width*10pieces*12 thickness|
|Braking system||set||2 line air braking system with air tank ,emergency relay valve,braking chambers and mechanical slack adjusters.|
|Electrical system||set||1||24 volt electrical system.7 pin electrical connector.parking .stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors|
|Relay valve||whole vehicle||1||WABCO|
|Landing gear||pair||1||JOST C200|
|Kingpin 2"||piece||1||50# Welded|
|Chamber||piece||2||stored chamber 2 units T30/30|
|Upper and lower wing plates||14/16mm,width146mm,|
using the highly quality Q345 steel,
|Twist locks||12||can load 1*40ft,2*20ft,1*20ft container|
|Main beam||height: 500mm webplate:6mm |
using the highly quality Q345 steel
|Reflectors||Red triangle reflectors at the rear of the trailer and on side|
|Spare tyre carrier||2||standard|
|Color||according to required on customer|

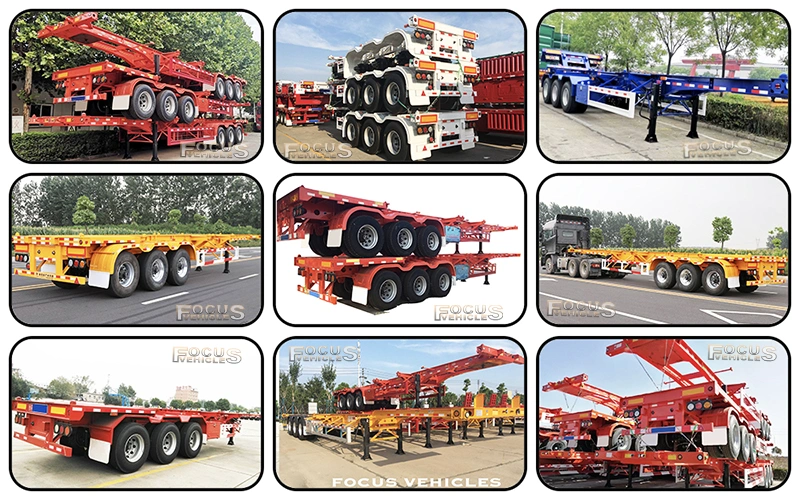

The skeleton trailer is mainly for containers transportation, it can be customized:
1-trailers for 20ft,30ft,40ft,45ft,48ft,50ft,53ft container shipping
2-flatbed or skeleton chassis type
3-Main beam:500mm height
4-material of the main beam: Q345
5-Suspension: spring suspension, Rigid, single point, bogie or air suspension
6-Axles number: 2 3 4 axles.
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional
Our Flatbed trailers advantages:
**Modern design: Double-Groove vertical van, light-weight I beam, arched form longitudinal beams, that make the trailers
structure super strong and superlight;
**Sound Adaptability: Passed the special processing, the overall frames of the traielrs can stand the actual test of various
**Superior Material selection: The raw materials are bought from top 5 Steel Mills, and all of other parts are all from top
suppliers also, like Triangle tyres, Jost landing gear, WEBCO relay valve, we have strict selection requirement for vendors.
**Top configurations: Ensure every trailers with high configurations to decrease the maintaince for clients, and improve the
trailers with longer service time
HENAN FOCUS VEHICLES Co.,ltd.(Short for Focus Vehicles), is commited to R&D, manufacturing, sales and services of high-end special vehicles. It has been gained good reputation and awarded with honors and titles, such as"HENAN High-tech enterprise", "Trustworthy Brand","Being committed to supplying high quality equipment and service for urban logistics and transportation", etc. Our mission is to creat more value for clients, employees, partners and shareholds, determined to become a real enterprise being respected in China special vehicles inducstry.
Various of trailers we can provide and be manufactured as special design and with environment protection equipments, Flatbed Semi-trailer, Container Chassis, Low-bed Semi-trailer, Fuel tank Semi-trailer, Bulk Cement Tank Semi-trailer, Fence semi-trailer, Side wall Semi-trailer, Box semi-trailer, Dump Semi-trailer, LPG LNG semi-trailer, Full trailer, Dump truck, fuel tanker truck, water tanker truck, cargo truck, concrete mixturetruck etc with great price and service advantages.
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news → completing production;
6**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
1. 24-hours hot line at your service, available for quality and extending service.
2. Lifelong free technical guidance service can be provided.
3. For Customers who buy bulk quantity for the first time, we can send service technicians to offer site instruction service
and short- term stationary point service.
4. Free technical training can be provided to help customers use and maintain the trucks and trailers quickly and correctly.
